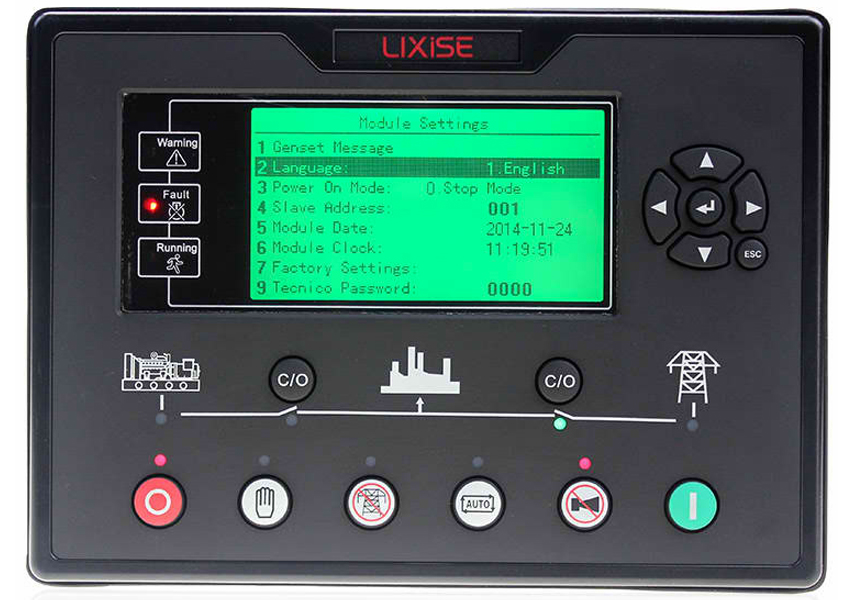

LXC66X0 series of power plant automation controller for the automation and monitoring system of a single diesel generator sets, use 32-bit microprocessor technology, achieve generator sets automatic boot/shutdown, the precision measurement of various parameters, alarm protection and three remote function. Through the built-in wireless communication module cooperate with mobile phone, you can connect the cloud server anywhere in the world, realize the unit remote monitoring, health check, early fault prevention, remote fault diagnosis and other services. Its structure is compact, simple wiring, high reliability, automation control systems are widely used in all types of generator sets and fire pumps.

LXC6620: Auto Main Failure, updates based on LXC6610,especially for automatic system composed by generator and mains.

    Main Characteristics:
  • With ARM-based 32-bit CPU, highly integrated hardware, new reliability level;
  • 240x128 LCD with backlight, multilingual interface(including English, Chinese or other languages) which can be chosen at the site, making commissioning convenient for factory personnel;
  • Built-in WIFI connection, can directly connect to the smartphone or wireless router, for remote monitoring, also has built-in mass storage, when no WIFI or mobile network, it can save all operational data within the module, once connected to the external network automatically updates the data to the cloud server;
  • with advanced self-health check function, the controller through a more comprehensive way to collect generator data, and a variety of WIFI connection technology, connect the cloud server for the generator to do data analysis, to detect potential failures in advance, to improve the operational reliability of the unit, allowing users to save manual check the cost.
  • Black-box record, can record data of each seconds before the failure occurred, has a record of 18 seconds, these data can be uploaded to the cloud sever through the phone or WIFI, in order to analyze the cause of the malfunction;
  • With 2100 hours of historical data records, record all the data of running every minute (configurable), these data can be uploaded to the cloud server through the phone or WIFI in order to check the health status of the unit and analyze the cause of the malfunction;
  • With the battery performance detection function, by checking the starting moment of generator start motor, the battery voltage drop amplitude and battery voltage when the genset is standby, calculate the aging rate of the battery;
  • With excitation voltage detection and ESC output detection, real achieve remote fault diagnosis.
  • With power generation data record function: record and store each process of power generation, contains the start time, shut off time, power generation time, generating electricity. It can record recently 6000 power generation records, as an effective basis for power generation cost accounting;
  • Fault records: can record the last 6,000 fault records, the controller detects all the generator operating data of fault moment and saved to the Flash memory, can be displayed on the screen, can also be uploaded and query to the computer and mobile phone.

Items Contents
Operating Voltage DC8.0V to DC35.0V,Continuous Power Supply.
Power Consumption <3W(standby:≤2W)
Alternator Input Range

15V - 360 V AC (ph-N)
26V - 620 V AC (ph-ph)
15V - 360 V AC (ph-N)
15V - 360 V AC (ph-N)
Alternator Frequency 50/60Hz
Speed Sensor voltage VPP 2.2 - 100Vpp (Peak to peak)
Speed Sensor Frequency 10000Hz (max)
Start Relay Output 16Amp Controller Power Voltage Output
Fuel Relay Output 16Amp Controller Power Voltage Output
Programmable Relay Output 1 7Amp 250VAC Voltage Free Output
Programmable Relay Output 2 7Amp 250VAC Voltage Free Output
Programmable Relay Output 3 16Amp 250VAC Voltage Free Output
Programmable Relay Output 4 16Amp 250VAC Voltage Free Output
Case Dimension 210mm x 152 mm x 46 mm
Panel Cutout 186mm x 141mm
C.T. Secondary 15A Rated
Working Conditions Temperature: (-25~+70)℃ Humidity:(20~90)%
Storage Condition Temperature::(-40~+85)℃
Protection Level IP55: When waterproof rubber seal installed between the controller and panel fascia.
IP42: When waterproof rubber seal is not installed between the controller and panel fascia.
Insulating Intensity Object: input/output/power
Quote standard: IEC688-1992
Test way: AC1.5kV/1min leakage current:3mA
Weight 0.68kg
