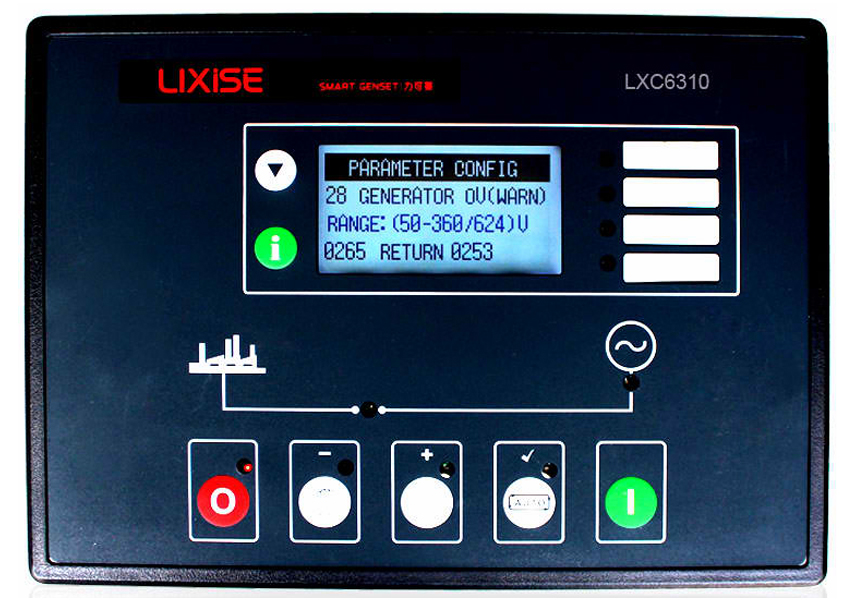

LXC63X0 series generator controller uses 32-bit microprocessor and embedded system control technology, precision measurement of 16 parameters, 32 programmable inputs, 35 warning protection parameters, 85 programmable output, a total of 121 can be configured parameters. Of which 108 can be configured from the front panel. With LCD graphic display module can display variousengine parameters and generator parameters. In many areas is rapidly promoting the use of, such as: small power plants, biogas powe generation, oil power, field engineering, factory, fire pumps, mobile base stations and many other fields. For gasoline, diesel,natural gas, biogas and other power equipment, many well-known enterprises at home and abroad has been widely supporting applications. Completely replace DSE51X0/52X0 series controllers.
-
Main Features：
- Using 128x64 dot matrix LCD display. Four languages: Simplified Chinese, English, Spanish, Russian showed that 98 percent of the parameters can be set on the controller;
- All parameters can be using a PC via USB, RS232, RS485 interface, adjust, using MODBUS protocol can achieve "three remote" function; (RS485 is optional)
- With SMS function, when there is an alarm generator can automatically set 5 phone numbers to send alarm information can also be controlled via SMS turbine generator sets and inspection status. With advanced networking
- capabilities, via GPRS mobile network and Internet connectivity, in any place where the network can be remotely monitor; (GPRS module to be installed: LXI680) Acquisition and display mains / generator phase voltage, phase current, frequency, active power, reactive power, power fact-or, power, various engine sensor data;
- Three fixed analog sensors (temperature, oil pressure, liquid level), two programmable analog sensor can be set to the temperature or pressure or liquid level sensor;
- Mains overvoltage, undervoltage, over and under frequency warning function, power generation has overvoltage, undervoltage, over and under frequency, over current, over power, warning and shutdown protection;
- Fault history with 200, and can record the fault instant oil pressure, water temperature, voltage, current and other important parameters. When multiple warnings occur, the warning bar will display them in turn, facilitate the analysis of the reasons;
- With real-time clock, timer switch (monthly / weekly / daily power once and can be set with or without load) function, to automatically maintain the purpose;
| Items | Contents | |
|---|---|---|
| Operating Voltage | DC8.0V to DC35.0V, Continuous Power Supply. | |
| Power Consumption | <3W(Standby mode: ≤2W) | |
| Alternator Input Range: 3 Phase 4 Wire 2 Phase 3 Wire Single phase 2 Wire 3 Phase 3 Wire |
20V AC - 360 V AC (ph-N) 30V AC - 600 V AC (ph-ph) 20V AC - 360 V AC (ph-N) 20V AC - 360 V AC (ph-N) |
|
| Alternator Frequency | 50/60Hz | |
| Speed Sensor voltage VPP | 1.0 to 70V(Peak to peak ) | |
| Speed Sensor Frequency | 30-10000Hz | |
| Start Relay Output | 16Amp Controller Power Voltage Output | |
| Fuel Relay Output | 16Amp Controller Power Voltage Output | |
| Programmable Relay Output 1 | 16Amp Controller Power Voltage Output | |
| Programmable Relay Output 2 | 16Amp Controller Power Voltage Output | |
| Programmable Relay Output 3 | 16Amp Controller Power Voltage Output | |
| Programmable Relay Output 4 | 16Amp 250VAC voltage free output | |
| Close Generator Relay Output 5 | 16Amp 250VAC voltage free output | |
| Close Mains Relay Output 6 | 16Amp 250VAC voltage free output | |
| Case Dimension | 240mm x 172mm x 57mm | |
| Panel Cutout | 214mm x 160mm | |
| C.T. Secondary | 5A Rated | |
| Working Conditions | Temperature: ( -25 ~ 70 )℃and humidity: ( 20 ~ 90 ) % | |
| Storage Condition | Temperature:(-40～＋70)℃ | |
| Protection Level | IP55: when waterproof rubber seal installed between controller and panel fascia. | IP42: when waterproof rubber seal is not installed between the controller and panel fascia. |
| Insulating Intensity | Object: input/output/power Quote standard: IEC688-1992 Test way: AC1.5kV/1min leakage current: 3mA |
|
| Weight | 0.90kg |
