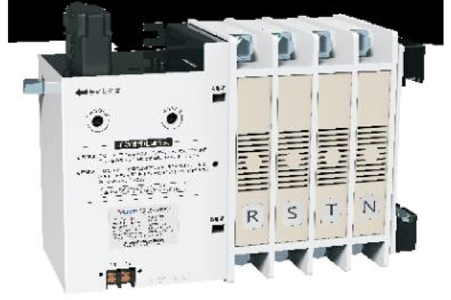

In Stock Product:Two Section Automatic Transfer Switch

YES1 series of PC-class dual-power supply automatic switch (here in after ATSE) is the latest company technology development products. It is inline with IEC60947-6-1, GB/T14048.11-2002 superscript, And also with "high-rise buildings fire norms" and "Architectural Design fire norms ", "emergency Lighting Design Guide, "" civil electrical design specifications. "
□ Small in volume, convenient in installation. □ Self-input and self-restoring , Self-input without self-restoring, automatic or manual is all depends on you.
□ You can choose integral type or split type.
□ 2 Pole ,3 Pole ,4 Pole all you can choose.
□ Running parameter could be adjusted.
□ Rated voltage of 230/400 Vac, 60 hz, rated current is from 10Amp to 3200Amp.

Main Function:
□ Closed-transition and open-transition are both by one electromagnetic winding.
□ Simple in structure and convenience in examine and maintain.
□ It’s a latest reliable sliding contact, with strong overload capacity.
□ Eliminate the superabundance electric parts, long service life.

With the development of society. People request to the ability of power supply are becoming more and more strictly. Two sources have been used in many conditions to ensure the reliability of power supply.YES1 series automatic transfer switch is such a new product designed according t o this requirement. As the products has the function of Self-input and self-restoring, Self-input without self- restoring, Utility-utility, utility- generator, it can detect the three phases four wires of utility and the three phase voltage of two sources at the same time. If the primary power is failure, such as over voltage, under voltage or loss phases, it will changeover from the abnormity power to the normal power automatically .The products system in utility-generator, could be sent out a signal. It's perfect capability, reliable ,flexible easy to use, wide range of dual-power products, up to the domestic level.



Application:
YES1 series ATS are mainly used for the state of a load, widely applicable to the fire, postal communication, hospitals, hotels, Urban rail transport and highrise buildings, industrial assembly line, television stations need electricity for the important parts. Main power Emergency Power can be power grids, with Self-excitation generator sets, battery, and so on.
