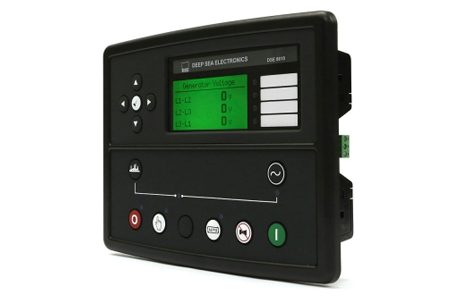

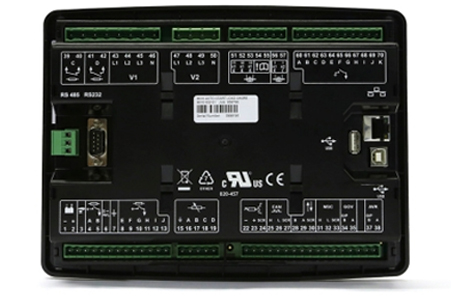

DSE8610
The DSE8610 is an intelligent mono display auto start load share control module packed with industry leading features to enhance multi-set control. The module can be synchronised with up to 32 generators within the same system.
OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 2.2”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.88kg
PRODUCT VARIANTS
8610-01 - 8610 Synchronising & Load Sharing Control Module
| KEY FEATURES | KEY BENEFITS |
|---|---|
| 32-set synchronisation. | Offers optimum flexibility for system expansion. |
| Configurable inputs/outputs (11/8). | Provides multiple installation options. |
| Dead bus sensing. | Provides rapid power delivery on multi-set systems. |
| Remote communications (RS232, RS485, Ethernet). | Provides secure and simple off site monitoring. All ports are continuously active. |
| Direct governor & AVR control. | Eliminates the requirement for external control equipment. |
| kW & kV Ar load sharing. | Provides controlled power delivery. |
| Configurable event log (250). | Provides access to historical alarms and operational status. |
| Integral PLC editor. | Ensures additional applications are easily integrated into the system. |
| Load switching, load shedding & dummy load outputs. | Allows load options and dummy load requirements to be independently controlled. |
| Power monitoring (kW h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection. | Provides clear accurate power measurement information. |
| Data logging (USB Memory Stick). | Provides current and historical status information. |
| DSE Configuration Suite PC Software. | Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring. |
| Tier 4 CAN engine support. | Ensures the control module can be used with the latest in modern electronic engine technology. |
ADDITIONAL FEATURES
- R.O.C.O.F & vector shift.- Generator load demand.
- Automatic hours run balancing.
- Bus failure detection.
- Electrical protections.
- Modbus RTU/TCP support.
- Configurable display languages.
- Audible alarms.
- Engine protections.
- Flexible sender inputs.
- Configurable timers & alarms.
- Configurable maintenance alarms (3).
- CANbus for electronic engines.
- Comprehensive fuel monitoring.
- Backed-up real time clock.
- SMS messaging start & stop functionality.
- Modem diagnostic tool.
DC SUPPLY
CONTINUOUS VOLTAGE RATING8 V to 35 V continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
MAXIMUM OPERATING CURRENT
460 mA at 12 V, 245 mA at 24 V
MAXIMUM STANDBY CURRENT
375 mA at 12 V, 200 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
0 V to 35 V
OUTPUTS
OUTPUT A (FUEL)15 A DC at supply voltage
OUTPUT B (START)
15 A DC at supply voltage
OUTPUTS C & D
8 A AC at 250 V AC (Volt free)
AUXILIARY OUTPUTS E,F,G,H,I & J
2 A DC at supply voltage
GENERATOR & BUS
VOLTAGE RANGE15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICK-UP VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
BUILT-IN GOVERNOR CONTROL
MINIMUM LOAD IMPEDANCE1000Ω
Fully isolated
FREQUENCY RANGE
3.5 Hz to 75 Hz
GAIN VOLTAGE
0 V to 10 V DC
Fully isolated
OFFSET VOLTAGE
+/- 10 V DC
Fully isolated
BUILT-IN AVR CONTROL
MINIMUM LOAD IMPEDANCE1000Ω
Fully isolated
GAIN VOLTAGE
0 V to 10 V DC
Fully isolated
OFFSET VOLTAGE
+/- 10 V DC
Fully isolated
ELECTRO-MAGNETIC COMPATIBILITY
BS EN 61000-6-2EMC Generic Immunity Standard for the Industrial Environment.
BS EN 61000-6-4
EMC Generic Emission Standard for the Industrial Environment.
ELECTRICAL SAFETY
BS EN 60950Safety of Information Technology Equipment, including Electrical Business Equipment.
TEMPERATURE
BS EN 60068-2-1Ab/Ae Cold Test -30°C.
BS EN 60068-2-2
Bb/Be Dry Heat +70°C.
VIBRATION
BS EN 60068-2-6Ten sweeps in each of three major axes. 5 Hz to 8 Hz @ +/-7.5 mm, 8 Hz to 500 Hz @ 2 gn.
BS EN 61000-6-4
EMC Generic Emission Standard for the Industrial Environment.
HUMIDITY
BS EN 60068-2-30Db Damp Heat Cyclic 20/55° C @ 95% RH 48 Hours.
BS EN 60068-2-78
Cab Damp Heat Static 40° C @ 93% RH 48 Hours.
SHOCK
BS EN 60068-2-27Three shocks in each of three major axes 15 gn in 11 ms.
VIBRATION
BS EN 60068-2-6Ten sweeps in each of three major axes. 5 Hz to 8 Hz @ +/-7.5 mm, 8 Hz to 500 Hz @ 2 gn.
BS EN 61000-6-4
EMC Generic Emission Standard for the Industrial Environment.
DEGREES OF PROTECTION PROVIDED BY ENCLOSURES
BS EN 60529IP65 - Front of module when installed into the control panel with the optional sealing gasket.
